Getting Started with Compose Multiplatform

Quoting from its homepage, Compose Multiplatform is "[a]n open-source, declarative framework for sharing stunning UIs across multiple platforms." It builds on two technologies: Kotlin Multiplatform, and Jetpack Compose.

Quoting from its homepage, Kotlin Multiplatform "is a technology that allows you to create applications for various platforms and efficiently reuse code across them while retaining the benefits of native programming. Your applications will run on iOS, Android, macOS, Windows, Linux, and more." Kotlin Multiplatform (or KMP) encompasses a number of technologies that manage the compilation of (mostly) Kotlin-based code into native builds for a given platform. It also allows for integration with platform-specific code in instances where a lower-level integration is required (think system integration).

Jetpack Compose , on the other hand, is "Android’s recommended modern toolkit for building native UI". It replaced Android's older, XML- and Java-based solution from its earlier days. It provides a lighter, more modern approach to application development that is faster on the device, and easier to maintain. It requires Kotlin, rather than Java, so it's quite a sea change for seasoned Android developers.

Put together, mobile developers can now (mostly) write a single codebase with a single, shared architecture. The resulting source code is compiled to a native application, which will provide a near-native experience (in both user experience and performance) on the intended target. As I understand things, a purely Swift-based application will probably perform slightly better, but only just. With each CMP release, though, performance continues to improve, so I think most developers should be well-served by CMP, given all that it offers. If you're interested in who is using CMP, you can visit its case studies page .

Armed with all of that knowledge, how does one get started? Fortunately, the good folks at JetBrains provide two options, The Kotlin Multiplatform IDE plugin for IntelliJ IDEA (or Android Studio), or the KMP Wizard . If you'd like to use the IDE, you can follow the instructions here . To make things simpler, we'll use the web wizard.

Once you open the web wizard, you will be asked for the project name, package, and target platforms. By default, all platforms are checked. What is not checked is the Server option at the bottom. If your application needs a backend and you'd like to write it using JetBrain's Ktor framework (personally, I'm more of a Quarkus guy), you can check that box. In our case, though, we just want to target Android and iOS, so we can uncheck everything but those two.

To make things even simpler, we can switch to the Templates Gallery tab at the top and click Download to get a zip file containing a basic project targeting Android and iOS. The only issue with this approach is that it leaves you updating the project information manually, and that can be trickier than you might expect, so I'd suggest using the wizard.

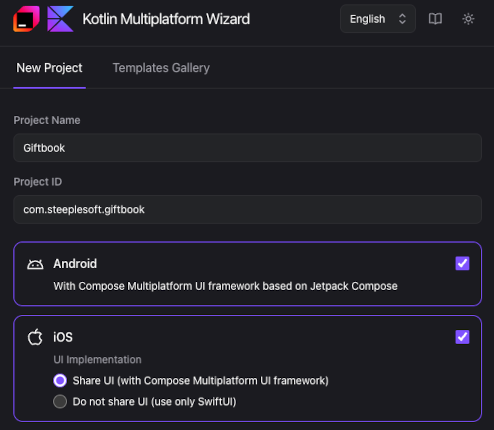

Since we're going to build an application together, using the wizard, we'll configure our project like this. Feel free to use your own package name. :)

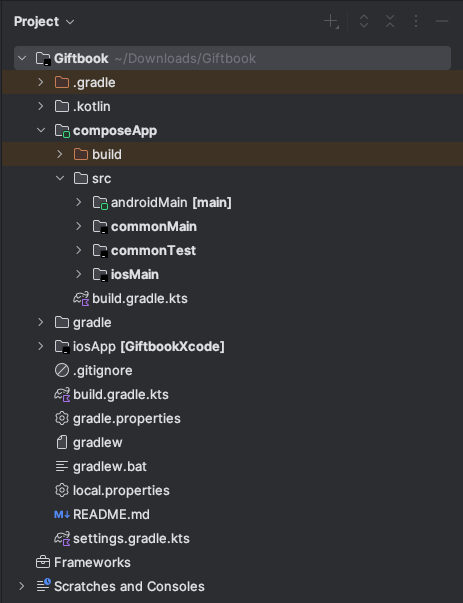

Once you download and extract the zip, open it Android Studio. When you first open the project, you need to be prepared to wait a bit as the IDE imports the project, generates run targets, etc. When it completes, you should see a project layout that looks like this:

There's a lot going on, so I won't try to cover it all here (we should cover most of it as we walk through the process), but a brief overview of the directories would be prudent:

While it's not much right now, we actually have a runnable application. To run it, though, we'll need to create a virtual device. To do that, go to Tools | Device Manager. This will open a panel on the right. At the top, there will be a plus sign. Click that and select Create Virtual Device. Select Phone on the left and the device of your choice on the right, click Next, then Finish. There's a chance I'm missing some details as I have this already set up, so if it goes haywire, consult the Android Studio documentation.

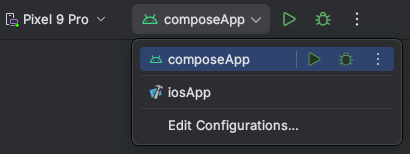

With the device created, we can now run our application using the toolbar at the top:

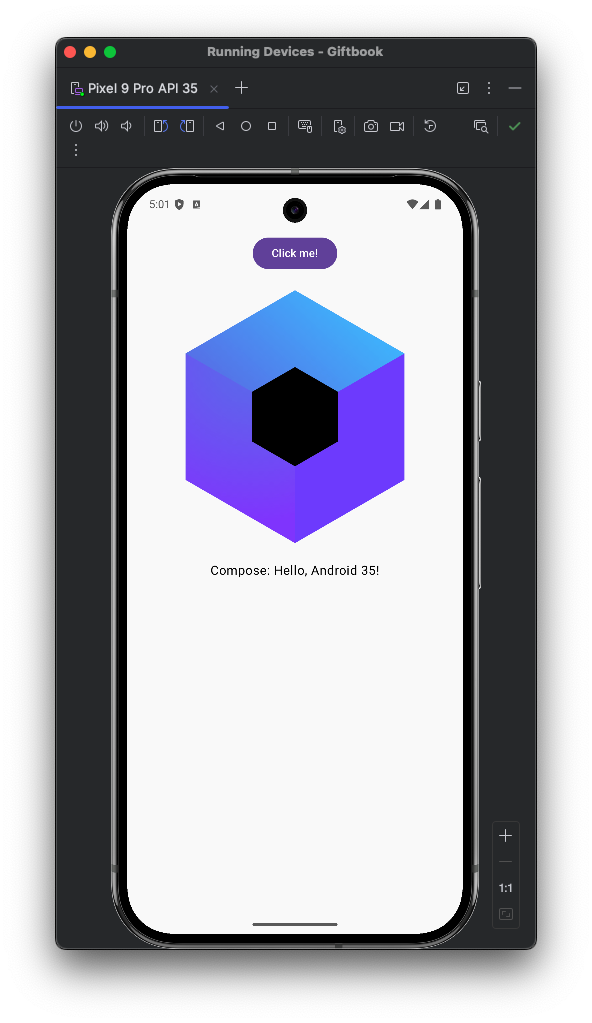

When you click the Run button (the green triangle), after some time, you will see the emulator appear:

If you're on a Mac, you can run the iOS version of the application. To do so, you must first install XCode (the details of which I'll skip here. This post is long enough as it is :) and then install the iOS platform:

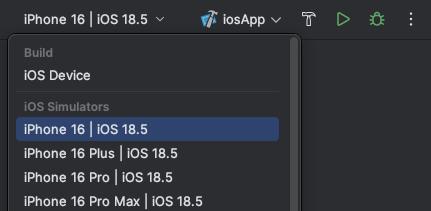

That will take a while, and you may need to restart Android Studio for it to pick up the target (again, my environment is already set up, so I'm having to guess a bit here). At any rate, Android Studio should now offer these options:

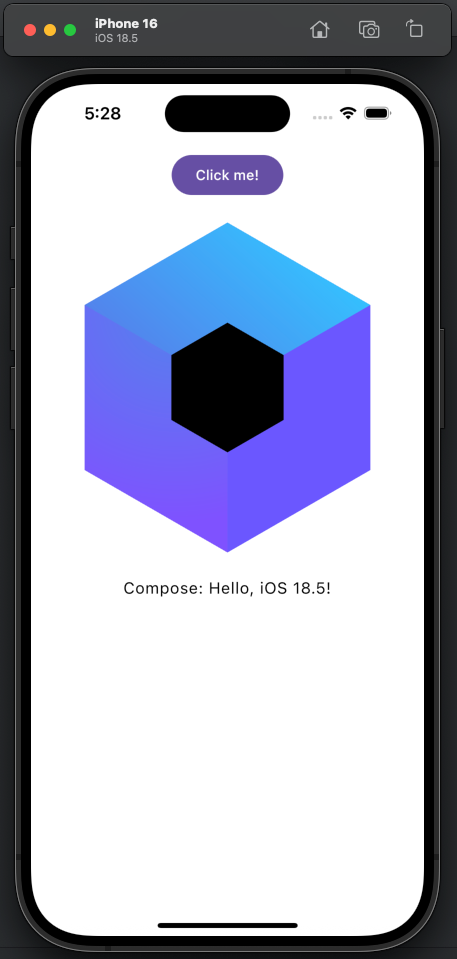

Again, clicking the Run button (and waiting a good long while, as the initial iOS build takes a while), we see this:

Kinda wild that it looks exactly like the Android version, right? 😛 It doesn't do much that's interesting yet, but we do have a working Compose Multiplatform application. In the next installment, we'll add what will be (for the architecture we're using), a core .

Until next time...
