Decompose Navigation: Let's Add a Screen

Wednesday, Aug 6, 2025 |

Mobile App Development (7 Parts Series)

1 Mobile App Development Series Introduction
2 Getting Started with Compose Multiplatform
3 Compose Multiplatform with Decompose
4 What's Up with expect/actual?
5 Decompose Navigation and the Root Component
6 Decompose Navigation: Let's Add a Screen
7 Make Room for Some Data

Table of Contents

The Needed Pieces
The Component
The Content
NavigationConfig
Child Factory support
Child content support
2, 4, 6, 8! It’s time for us to navigate!

In the last post, we added the various pieces to make navigation possible and stopped JUST short of the goal line. In this post, we’ll finish up our navigation discussion by adding a new screen and seeing navigation in action.

The Needed Pieces

Each screen/page in our app will need several changes:

A component class
A content function
A NavigationConfig entry
Child factory support in RootComponent.child
Child content support in RootContent()

The Component

For demo purposes, we’re just going to add a very simple screen (that we fully intend to throw away later). We could create a screen our app will actually use later, but I don’t want to muddy the details here by introducing our app’s business logic. That said, here’s our dummy component:

import com.arkivanov.decompose.ComponentContext

class DummyComponent(componentContext: ComponentContext) :
        ComponentContext by componentContext {

    fun saySomething() : String {
        return "I'm another screen!"
    }
}

The Content

The content is, of course, a @Composable function. Technically, it can reside anywhere you want, but I tend to like Decompose’s example, so we’ll put this in DummyContent.kt:

import androidx.compose.foundation.layout.Column
import androidx.compose.foundation.layout.fillMaxSize
import androidx.compose.material3.Text
import androidx.compose.runtime.Composable
import androidx.compose.ui.Modifier

@Composable
fun dummy(
    component: DummyComponent,
    modifier: Modifier = Modifier
) {
    Column(
        modifier = modifier
            .safeContentPadding()
            .fillMaxSize()
    ) {
        Text(text = component.saySomething())
    }
}

NavigationConfig

Our new screen doesn’t need any data, so we can simply add a data object:

import kotlinx.serialization.Serializable

@Serializable
sealed interface NavigationConfig {
    @Serializable
    data object Home : NavigationConfig

    @Serializable
    data object Dummy : NavigationConfig
}

Child Factory support

Now we need to update the child factory function to take in the NavigationConfig and return the associated component:

private fun child(config: NavigationConfig,
                  componentContext: ComponentContext): ComponentContext {
    return when (config) {
        is NavigationConfig.Home -> GreeterComponent(componentContext)
        is NavigationConfig.Dummy -> DummyComponent(componentContext)
    }
}

Child content support

And, finally, we need to tell Compose what to render:

Children(
    stack = component.stack,
    modifier = modifier.padding(5.dp),
    animation = stackAnimation(slide()),
) {
    val childModifier = modifier.fillMaxWidth().padding(10.dp)
    when (val component = it.instance) {
        is GreeterComponent -> greeter(component, childModifier)
        is DummyComponent -> dummy(component, childModifier)
    }
}

2, 4, 6, 8! It’s time for us to navigate!

We have all the pieces in place, so now we just need to add a way for the user to cause the app to navigate. To do that, we’re going to add a button to our "home" screen. Let’s start with the content:

@Composable
fun greeter(
    component: GreeterComponent,
    modifier: Modifier = Modifier
) {
    var showContent by remember { mutableStateOf(false) }
    Column(
        modifier = Modifier
            .safeContentPadding()
            .fillMaxSize(),
        horizontalAlignment = Alignment.CenterHorizontally,
    ) {
        Button(onClick = { showContent = !showContent }) {
            Text("Click me!")
        }
        AnimatedVisibility(showContent) {
            val greeting = remember { component.greet() } // !!!
            Column(Modifier.fillMaxWidth(), horizontalAlignment = Alignment.CenterHorizontally) {
                Image(painterResource(Res.drawable.compose_multiplatform), null)
                Text("Compose: $greeting")
            }
        }

        Button(onClick = { component.dummy() }) {
            Text("Dummy")
        }
    }
}

Note the Button we added to the bottom of the content. That button will call a function we’ll now add to GreeterComponent:

fun dummy() {
    nav.pushToFront(NavigationConfig.Dummy)
}

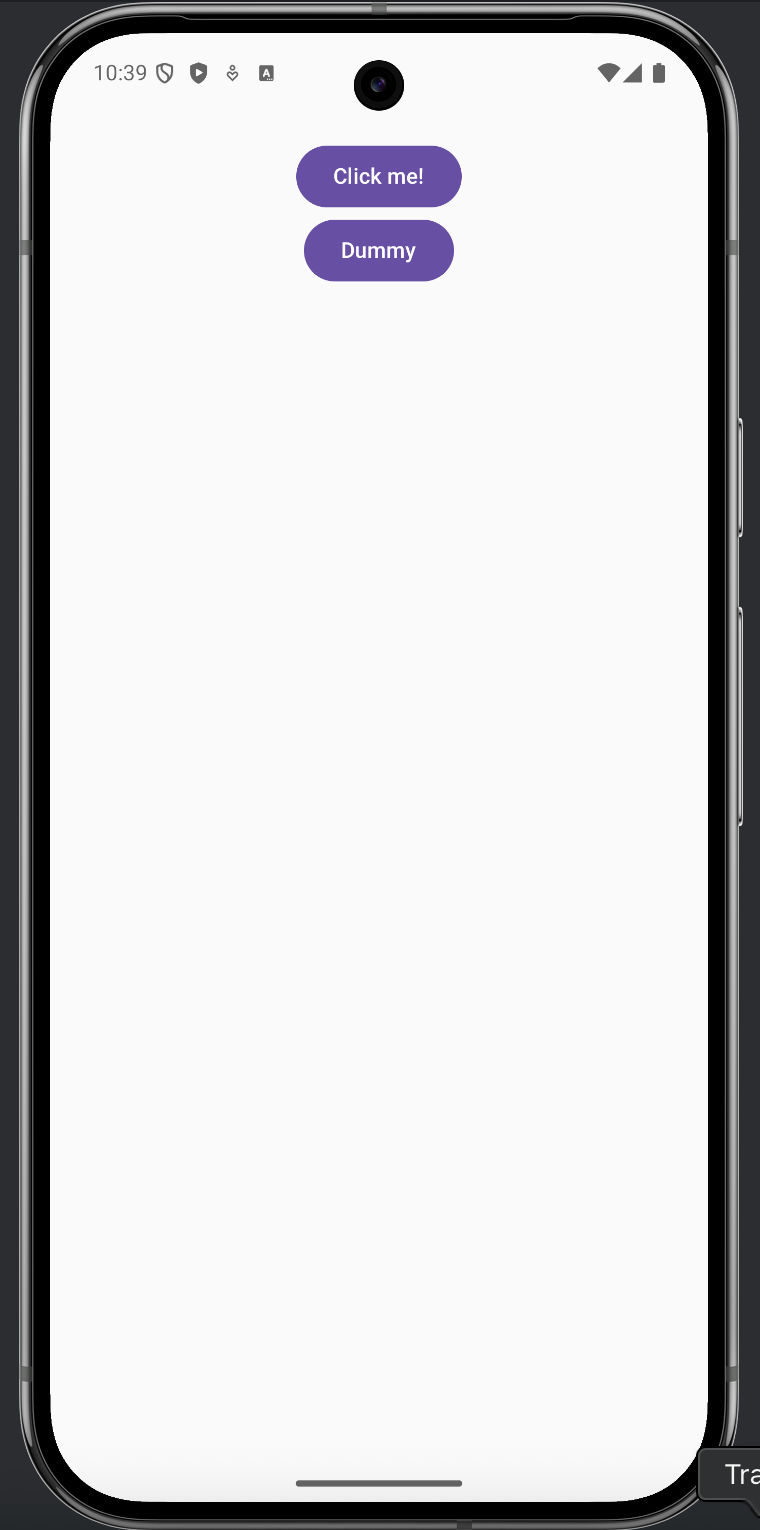

And now we run the app. You should see a gem like this:

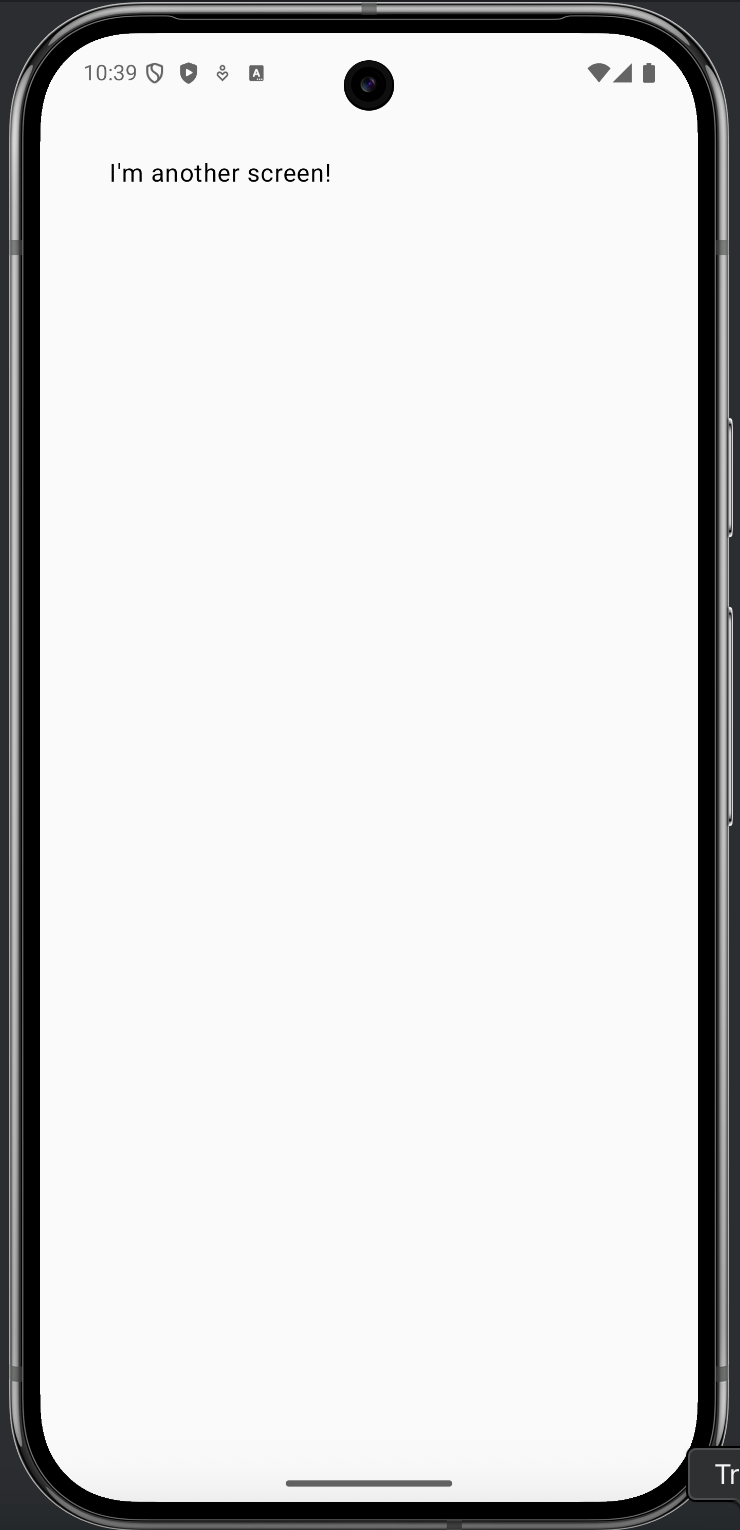

And if you click on Dummy, you’ll be presented with this gem:

It’s super ugly, but it works, and that’s the important part. In the next entry in the series, we’ll start working on our business logic and introducing some data-driven screens.
