Running Long-Running Reports with JMS
Tuesday, January 25, 2011 |At a recent meeting of the Oklahoma City JUG, I was asked by a member how her group could "script" JSF report generation. After a couple of questions, I figured what she really wanted: she wanted a way to allow users to request reports in an ad hoc manner, as opposed to the reports being run on a schedule. In a general sense, this is a pretty easy question to answer, but I’ve run into situations where the reports take a long time to run — and I’m sure she will, as well — making a web interface for generating the report less useful (due to timeouts, etc). In this entry, we’ll take a look at one way to handle that.
In a prior shop, I solved this problem using a Thread. As you may or may not know, the use of Threads in user applications is STRONGLY discouraged in Java EE. A thread improperly started and managed can cause all sorts of problems for the server. Fortunately, Java EE offers a way to perform long-running operation like we’re discussion in an asynchronous manner: JMS. For old-timers, the first reaction to hearing that may be wailing and gnashing of teeth, but Java EE 5 (and, of course, Java EE 6) makes this really, really easy.
Our sample app will be a really simple JSF application. It will ask the user for an email address, then send that address to a JMS queue, where a message-driven bean will pick it up, fake generating the report and email it to the user. Let’s start with the JSF managed bean:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
@ManagedBean
@RequestScoped
public class JmsBean {
@Resource(mappedName = "jms/ConnectionFactory") // [1]
private ConnectionFactory connectionFactory;
@Resource(mappedName = "jms/Queue") // [2]
private Queue queue;
protected String emailAddress;
private static final Logger logger = Logger.getLogger(ReportMdb.class.getName());
public String getEmailAddress() {
return emailAddress;
}
public void setEmailAddress(String emailAddress) {
this.emailAddress = emailAddress;
}
public String generateReport() {
try {
Connection connection = connectionFactory.createConnection();
Session session = connection.createSession(false, Session.AUTO_ACKNOWLEDGE); // [3]
MessageProducer messageProducer = session.createProducer(queue); // [4]
ObjectMessage message = session.createObjectMessage(); // ([5])
ReportRequest request = new ReportRequest(emailAddress);
message.setObject(request);
messageProducer.send(message); // ([6])
return "queued";
} catch (JMSException ex) {
Logger.getLogger(JmsBean.class.getName()).log(Level.SEVERE, null, ex);
return null;
}
}
}
At the top of the class, we see two @Resource-annotated members, connectionFactory([1]) and queue ([2]). These two objects are then used in generateReport to send our message. We get a connection, then create javax.jms.Session ([3]) and javax.jms.MessageProducer ([4]) instances.
Next we create an ObjectMessage ([5]). In this case, ReportRequest is a really simple class that just has a single, public member: emailAddress. In a real world app, this would have a myriad of members that hold the user’s criteria for the report. Note that the ObjectMessage payload must implement Serializable. With our message created, we send it ([6]) and tell JSF to navigate to the queued view. At this point, from the user’s perspective, the job is done, and the report wil be delivered via email when it’s done. On the backend, though, we still have work to do.
A JMS message-driven bean, or MDB, is a bean that watches a particular JMS Destination (usually a Topic or a Queue) and performs some action when a message is delivered, and in Java EE 5 and later, they’re incredibly simple:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
@MessageDriven(mappedName = "jms/Queue", activationConfig = { // [1]
@ActivationConfigProperty(propertyName = "acknowledgeMode",
propertyValue = "Auto-acknowledge"),
@ActivationConfigProperty(propertyName = "destinationType",
propertyValue = "javax.jms.Queue")
})
public class ReportMdb implements MessageListener { // [2]
@Resource(name = "mail/myserver")
private Session mailSession; // [3]
private static final Logger logger = Logger.getLogger(ReportMdb.class.getName());
@Override
public void onMessage(Message inMessage) {
ObjectMessage msg = null;
try {
if (inMessage instanceof ObjectMessage) { // [4]
msg = (ObjectMessage) inMessage;
Object obj = msg.getObject();
if (! (obj instanceof ReportRequest)) {
throw new
RuntimeException("Invalid message payload. ReportRequest required, but found " +
obj.getClass().getName());
}
ReportRequest request = (ReportRequest)obj;
logger.log(Level.INFO, "Sending report to {0}", request.emailAddress);
sendMessage(request.emailAddress);
} else {
logger.log(Level.WARNING, "Message of wrong type: {0}",
inMessage.getClass().getName());
}
} catch (JMSException e) {
logger.log(Level.SEVERE, "Error: {0}", e.getLocalizedMessage());
}
}
protected void sendMessage(String emailAddress) {
MimeMessage msg = new MimeMessage(mailSession);
try {
msg.setSubject("Your Report");
msg.setRecipient(RecipientType.TO, new InternetAddress(emailAddress));
msg.setText("Here is your report!");
Transport.send(msg);
} catch (MessagingException me) {
logger.log(Level.SEVERE, "Error: {0}", me.getLocalizedMessage());
}
}
}
There are two parts to creating this MDB. First, we must create a class that implements javax.jms.MessageListener ([2]), which has one method, void onMessage(Message inMessage). Next, we add annotations to tell the container to deploy the MDB, @MessageDriven ([1]). I don’t want to get lost in the weeds of all the options here, so I’ll only make note of two: the mappedName, and the destinationType (javax.jms.Queue). The container will look, then, for a Queue called jms/Queue, which we’ll look at in a moment.
Since we’re going to be emailing the report, we inject a javax.mail.Session ([3], which we’ll not spend any time on here). In onMessage, we have some defensive coding ([4]) to make sure we were sent an ObjectMessage (since the Queue will take anything you send it), and that the ObjectMessage payload is a ReportRequest (I did, though, leave out the null check, which you will definitely want). Once we’re sure we have a good message, we extract the email address, "generate" the report, and email it to the user. Our work here, then, is done!

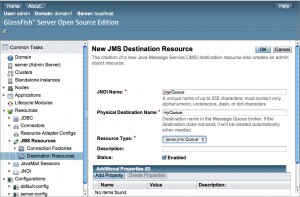

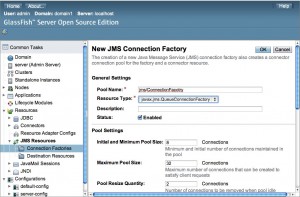

Before we leave the issue, though, it’s important to note that the JMS Queue must be configured in the broker as part of the application deployment process. Here’s how that would look for a GlassFish deployment.
And that should do it. If you’re interested in the source, you can find that here. If you have any questions, feel free to post them below.
